Description:

Two-speed car yacht off switch, high current total power switch, on-off leakage switch

Size: 2.68″ x 2.68″ x 3.07″

Terminal studs: 10mm diameter

ABS plastic housing, durable made for safety use

Rear cover insulates terminals against any short of circuits

Copper terminal studs with nuts and washers

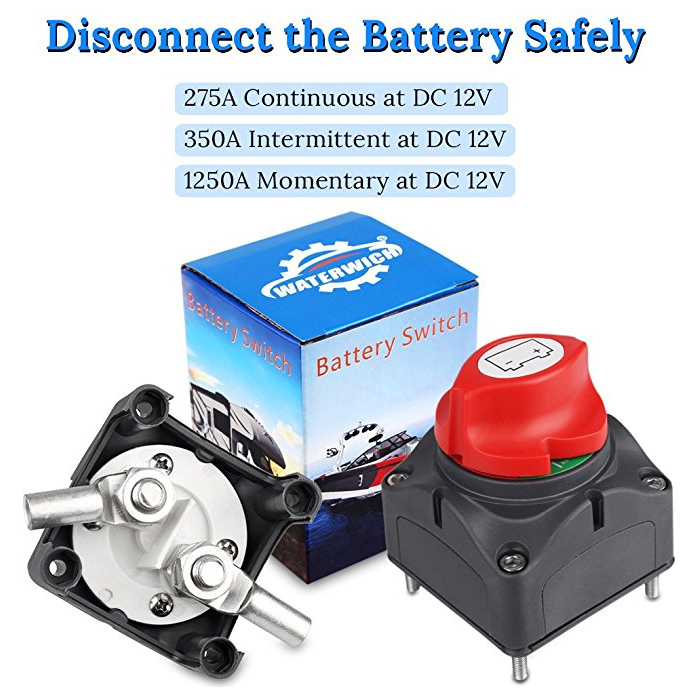

275A continuous at DC 12V, 350A Intermittent at DC 12V, 1250A momentary at DC 12V

Used for 8V up to 60V DC systems to isolate and secure the electrical system

Can be controlled by switching to a 90° counterclockwise position

Eliminate any power draw from the battery when vehicle or boat is not in use

Disconnects the battery safely

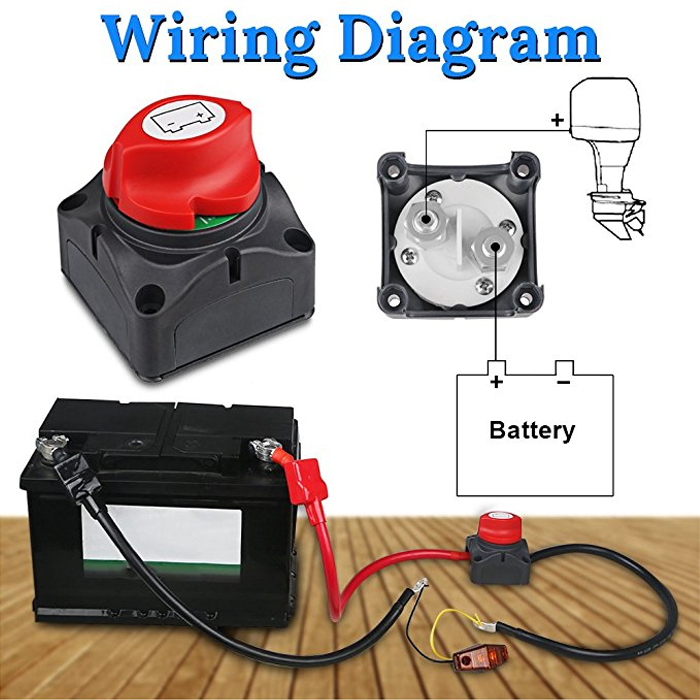

Easy to install – Comprehensive wiring diagram and installation

Provides a simple and economical way to separate batteries

Break-before-make contact design allows switching between battery packs without interruption

Ignition protection,Safely installed on petrol-powered boats or vehicles

Widely Application in Ship Boat Small yacht RV Camper truck Car Vehicle Automobiles Campers ATV UTV battery banks and other 0-60V devices

Note: High current may be dangerous, please use it carefully

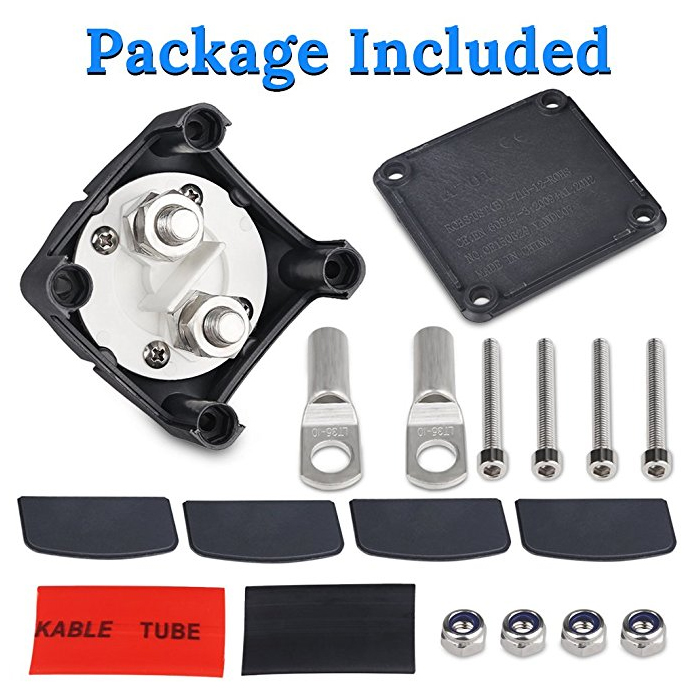

Package Contents:
1* Battery Switch
1* Backing Pad
4* Side Pad
4* Mounting Bolt
2*10mm Copper Lug Ring Terminal
2* hot melt adhesive sleeve (1 red 1 black)
