Description

Specifications
Voltage(Max): 32V DC
Input Terminal Rating: #10-32 threaded studs (100A max.)
Output Terminal Rating: 30A max. per circuit
Input Wire Size: #4-6 AWG
Output Wire Size: #12-16 AWG
Mounting Hole Dimensions: 1.1″x1.93″(29*49mm)
Terminal Dim Dimensions: 2.52″(6.4cm)
Blade Fuse Dim Dimensions: 0.78″x0.78″x0.63″(20*20*16mm)
Torque Rating: 20in-lb(2.25Nm) max
Mounting Torque Rating: 8 in-lb(0.9Nm) max
Materials: PC Cover(Transparents)+ PBT Base(Black) + POM Push Botton(White) + Tin-plating Copper

Features:

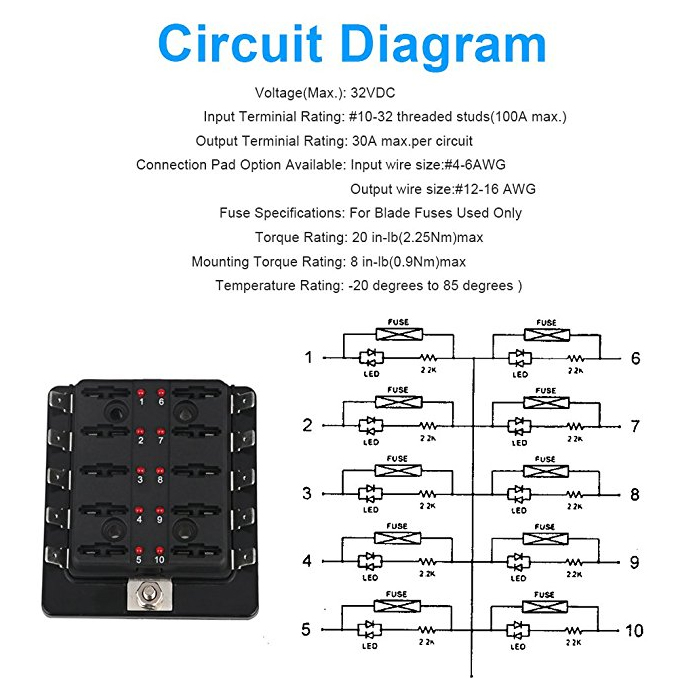

This is the only 10 way blade fuse block that didn’t come with Installation Notes,but We show the wiring diagram in the product picture

Temperature Rating :-20 degrees to 85 degrees

Maximum of 30 Amp per circuit and 100 Amp per panel

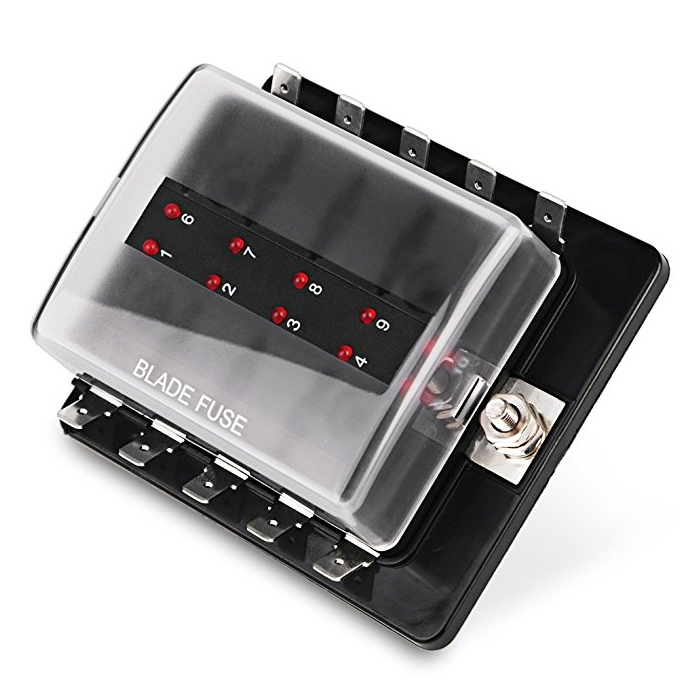

Clear cover included for additional protection

The fuse will cut off the current auto when it rise in the current to a certain temperature, so as to protect the safe operation of the circuit

PBT shell (fame retardant,resistance to high and low temperarure environmental protection material)

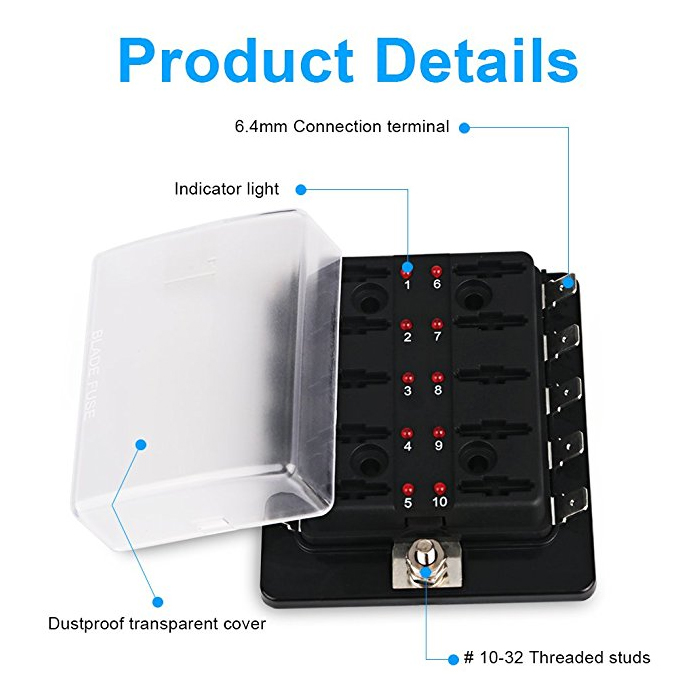

Transparent cover for dust & humid protection

Rugged, light weight construction

Can be installed in circuit

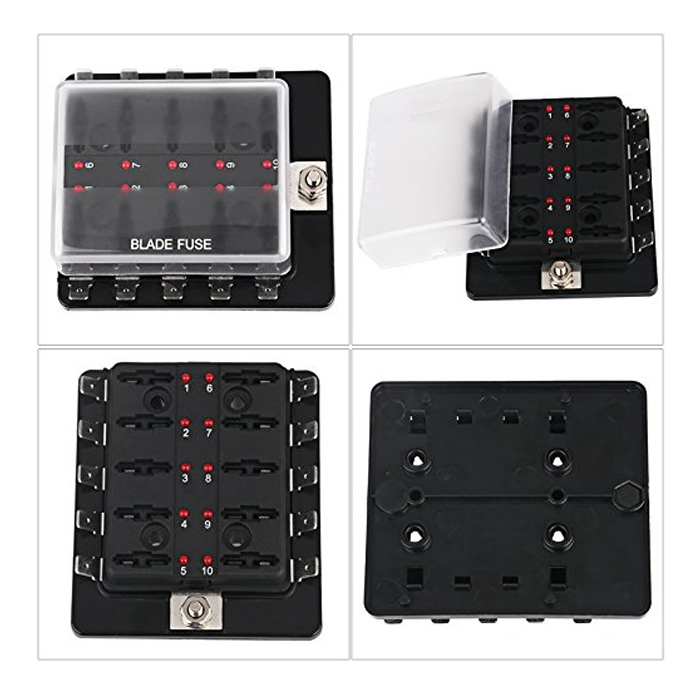

Can be fixed through 2 pre moulded holes on side

Each fuse holder is numbered to make fuse installation and identification as easy as possible

The product with red LED warning light, corresponding to each fuse piece connected to the electrical appliances,Red LED illuminates when fuse is blown

Widely used in Autos, Buses, Subways, Airplanes, Tankers,Car,Boat,Marine,Car,Truck,Vehicle,SUVS,Yacht,RV,Ships etc

It is a perfect kit for adding a few circuits to your auto, boat, off-road or others if all you need is something simple. Made of tin-plated copper common sourced bus, good productivity and corrosion-resistant, it is the absolute best!
