6 Pack 30A Fuse Relay Switch Harness Set 14 AWG Hot Wires- 4-Pin 12V DC SPST Automotive Relay (6 Pack)

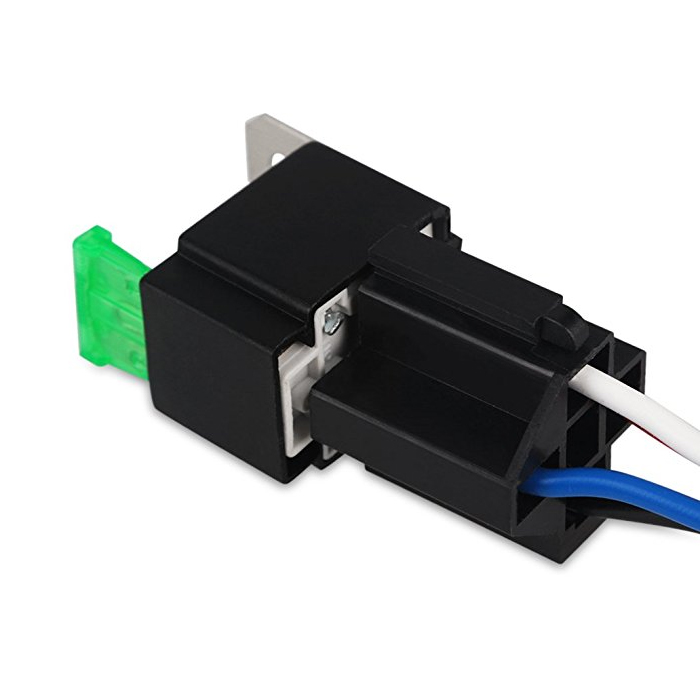

VANJING 6 Pack 12V DC 30A automotive relay is 4-pin SPST which is built-in 30A blade fuse so that can save money and space due to the built-in fuse holder on the automotive relay. The set includes 6 relays, 6 relay harnesses, and 6 blade fuses.

Features

1. Built in fuse socket with included 30A blade fuse with heavy duty 14AWG wires for main contact.
2. 4-Pin single pole single throw relay.
3. The relay is equipped with a 30 Amps blade fuse, but it can be switched to 40 Amps.
4. Package include: 6 relays, 6 relay harnesses and 6 blade fuses.
5. We offer life-time technical support, if you have any questions about our items, please write email to us.

Wiring instruction

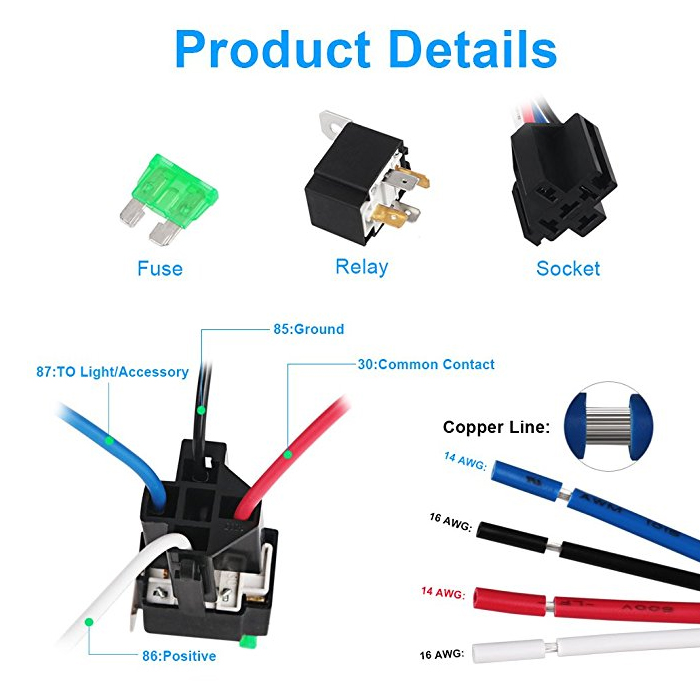

1. Black – Ground (85): To be connected to the ground.
2. Red – VDC (30) : Common contact which can be connected to a 12V DC power input but also to the ground.
3. White – Trigger (86): To be connected to the positive input 12V DC input.
4. Blue – Output N/O (87): To be connected to the light/ accessory.

Relay Hareness

• Blue： 14AWG Pin 87
• Black：16AWG Pin 85
• White：16AWG Pin 86
• Red：14AWG Pin 30
• Wire Specifications:
• black-ground(85)
• red-VDC(30A)
• white-trigger(86)
• blue-output n/o(87).

Product information

• Relay hareness power supply: 12V.
• Rated current: 30A.
• Rated voltage: 5-72V.
• Contactor load：40A.
• Contactor switching voltage: 12V/24V
• Pin 87 to light/accessory
• Pin 85 to ground
• Pin 30 to common contact
• Pin 86 to positive supply.

Product Details

• The dimension of the socket is 2.4″X1.37″X1.0″.
• The length of relay harnesses is 4.9″.

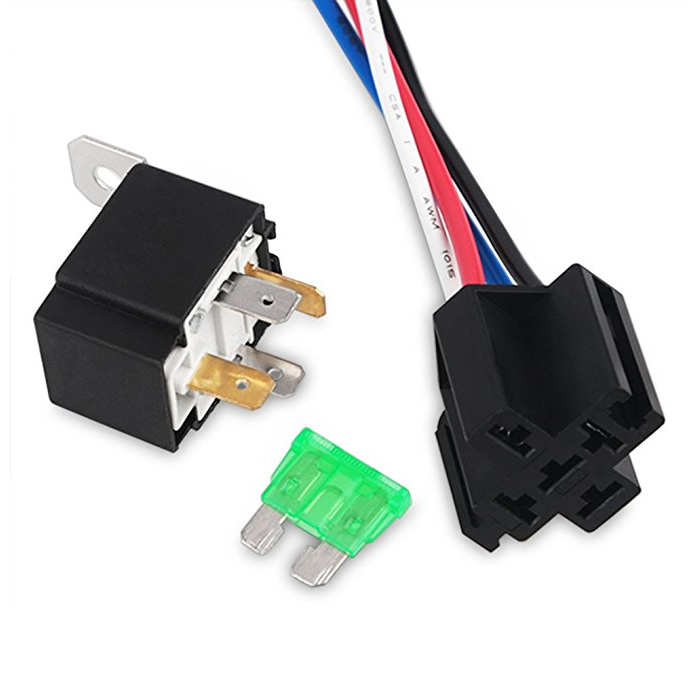

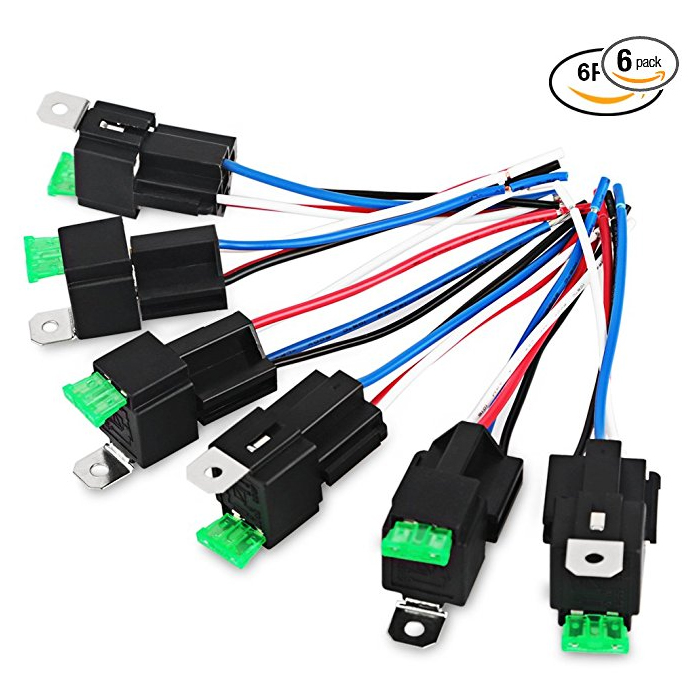

• The total item includes fuse, relay and socket, totally 6 pack.
• Built in fuse socket with included 30A blade fuse with heavy duty 14AWG wires for main contact.

Package Information

• 6 relay+6 fuse+ relay harnesses
• All automobiles and devices equipped with a 12 Volt DC power source.
• If you want install the equipment, you must have a good understanding of automotive electronics, system and procedures.
• For your and others’ safety, let professional technicians to install the equipment.
